How to Solve the Broken Wire of Servo Motor?

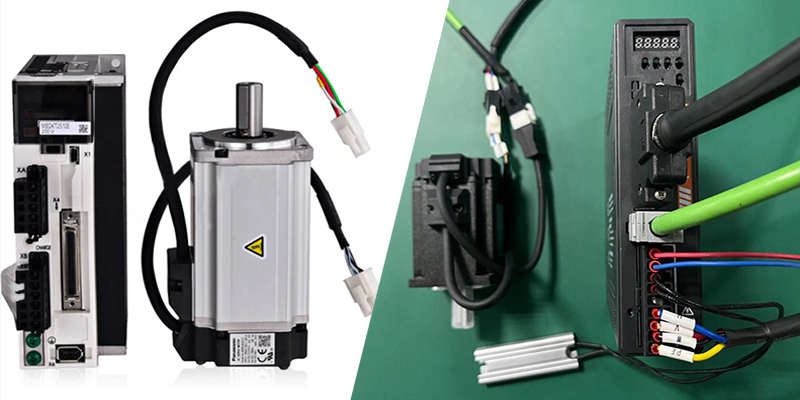

Servo motor is a kind of motor commonly used in precision control system, which can precisely control the speed and position of the motor according to the control signal. When installing and using a servo motor, disconnecting or wiring is a very important step, which directly affects the working effect and safety of the motor.

Preparatory work

We need do some preparatory work before we start the disconnection:

Confirm the model and specification of the industrial servo motor used, as well as its corresponding electrical parameters.
Understand the wiring mode of the servo motor, in general, the wiring mode of the servo motor has two kinds of direct wiring and the use of connector wiring.
Prepare required tools and materials, such as screwdrivers, wrenches, and cables.

Direct wiring

First, confirm the rated voltage and frequency of the power supply according to the electrical parameters of the servo motor and make sure that it matches the servo motor.
Connect the fire wire (L) and zero wire (N) of the power supply with the corresponding terminals of the servo motor respectively, usually fixed with screws.
Connect the ground wire (GND) of the servo motor to the ground wire of the power supply to ensure safe grounding.
Confirm the wiring of the control signal line of the servomotor, generally there are differential signals, pulse direction signals and other ways. According to the specific wiring method, connect the control signal wire to the corresponding terminal.
Check whether the wiring is firm, to ensure that there is no loose or poor contact phenomenon.
Conduct power on test to confirm that the servo motor can work normally.

The use of connector wiring

First, pair the female and male connectors to ensure that they can be correctly connected.
Connect the female connector to the wiring terminal of the servo motor and secure it with screws.
Connect the male end of the connector to the wiring terminal of the controller or driver and secure the connector using screws.
Check whether the connector is securely connected to ensure that it is not loose or in poor contact.
Test the power supply to confirm that the servo motor can work normally.

Other Precautions

Be sure to disconnect the power supply before performing disconnection wiring to avoid electric shock or other safety accidents.
When disconnecting and wiring, pay attention to avoid crossing or short-circuiting of wires, so as not to affect the normal operation of the servo motor.
During the wiring process, pay attention to the marking and color of the terminals to ensure proper connection to avoid malfunction or damage caused by connecting the wrong wires.
If you are unsure of the wiring method or operation procedure, it is recommended that you consult the manual of the servo motor or consult a professional for advice.

Servo motor disconnect wiring is an important part of the installation and use of servo motors, the correct disconnect wiring can ensure the normal operation and safe use of servo motors. In the disconnecting wiring, you need to do a good job of preparation, according to the electrical parameters of the servo motor to choose the appropriate wiring method, and pay attention to follow the correct wiring steps and precautions. Through the above disconnecting wiring method, we can better install and use the servo motor to improve its working effect and safety.
